Duct Sizing Chart & Guide: How to Design a Duct System

Want to DIY your duct? Have a room that's always too hot or too cold? Here's how to size an HVAC unit, design the duct system to match, and build your materials list — using field-tested rules of thumb, not engineering software.

What You Will Need

Before you start designing your duct system, gather a few basics:

• A tape measure
• A pen and paper (or a spreadsheet)
• A duct CFM chart (the one below works)

That's genuinely it for the planning stage. You'll measure every room, note ceiling heights and exterior walls, and work through the steps below with simple arithmetic.

What ductwork actually does

Ductwork is the network of pipes — called duct — that connects your HVAC unit to the vents in your rooms. It distributes conditioned air evenly and efficiently while pulling stale air back for reconditioning. A well-designed system improves comfort, efficiency, and air quality. A bad one gives you hot bedrooms, high bills, and a unit that dies young.

This guide walks through the whole process: sizing the unit, choosing materials, calculating airflow room by room, laying out the trunk, and listing materials. All you need is a tape measure and a calculator.

Step 1: Size Your HVAC Unit

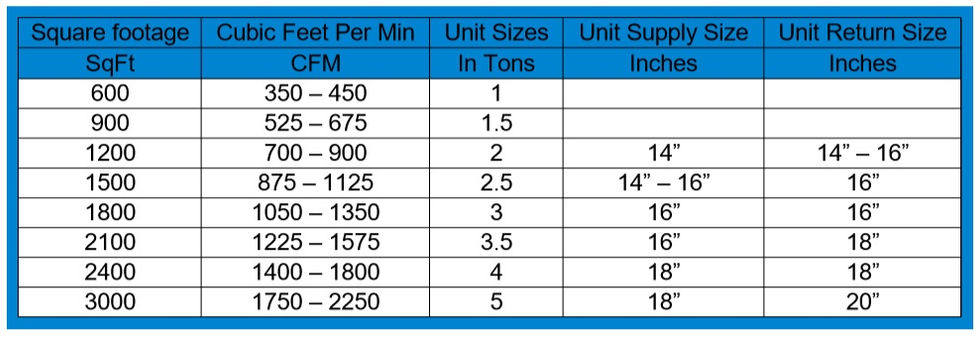

Unit size depends on square footage and climate. The rule of thumb that holds up in the field:

Getting this wrong hurts both ways. Too small and the unit can't keep up on the hottest days. Too big and it short-cycles — runs for five minutes, shuts off, runs again. Short cycling sounds efficient but it's not: the unit needs 15–20 minute runs to pull humidity out of the air. An oversized unit leaves you cool but clammy.

Most residential units are designed to move 400 CFM per ton of cooling. That number drives everything downstream. If you want a second opinion on tonnage, the BTU calculator at calculator.net factors in climate and insulation — but the 1-ton-per-600-sqft rule will get you in the right ballpark for most homes.

Notice the CFM values are ranges. Where your system lands in that range depends on the ductwork's friction loss and the specific equipment. Friction loss is the pressure drop caused by air rubbing against duct walls, bends, fittings, and obstructions. To minimize it:

• Select a duct material with a lower friction coefficient, such as metal
• Use a larger return — when in doubt, oversize the return side
• Avoid sharp or unnecessary bends in the duct
• Take the most direct route from unit to vent

Lower friction gets you toward the top of the CFM range, which means smaller ducts can do the same job. If you want to cross-check your numbers, the Engineering Toolbox duct sizing guide is a solid free reference.

Step 2: Choose Your Duct Material

Two main options: metal (galvanized round pipe or rectangular) and flex (flexible insulated duct).

Metal is strong, durable, fire-resistant, and easy to seal. It also has the lowest friction, so air moves through it most efficiently. Downsides: more expensive, heavier, noisier, and it needs separate insulation in unconditioned spaces.

Flex is lightweight, inexpensive, pre-insulated, and quiet. Downsides: higher friction (air doesn't glide through a corrugated interior), more fragile, and it has to be pulled tight — saggy flex kills airflow.

Most residential jobs use a mix: metal for the trunk, flex for the branch runs. If you use flex for runs, stretch it drum-tight. Every sag is a pressure drop you didn't plan for. Lowe's has a decent ductwork buying guide if you want to compare materials side by side before you buy.

Step 3: Calculate Airflow for Every Room

Each room needs a specific amount of air. The field rule:

This assumes 8-foot ceilings, average insulation, a couple of windows, and no more than one exterior wall. Adjust up for tall ceilings (multiply by ceiling height ÷ 8), big west-facing windows, or poor insulation. Kitchens and bathrooms need less for comfort but still need ventilation.

Place supply vents near windows and doors on exterior walls — this is called washing the windows, and it counteracts the heat gain/loss right where it enters. Put returns toward the center of the house, away from the furnace, kitchens, and bathrooms. The Engineering Toolbox air-change calculator can help you sanity-check room-by-room numbers if you want more precision than the rule of thumb.

Step 4: Size Ducts with the CFM Chart

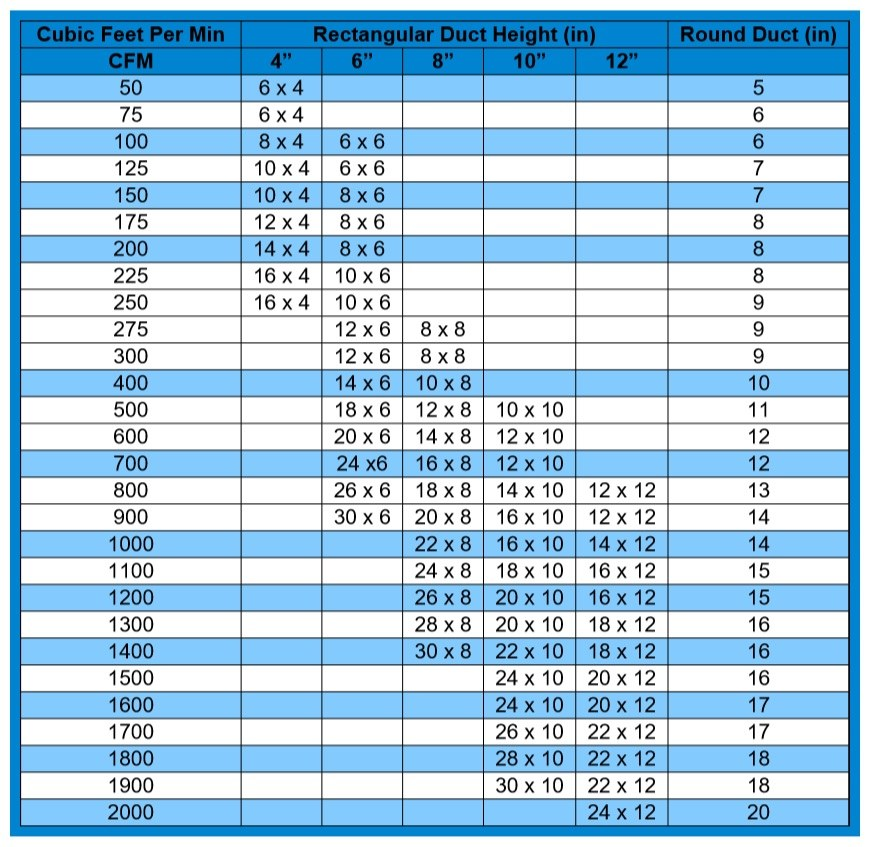

Once you know each room's CFM, look up the duct size on the chart. Match the CFM to the smallest duct that handles it.

Quick reference for the most common branch runs:

If you're running flex instead of metal, consider going one size up on long runs — flex has higher friction and the chart assumes smooth metal.

Step 5: Design the Trunk Layout

The trunk (or trunk line) is the big duct leaving the unit. Branch runs tap off it to feed individual rooms. The key principles:

• Start at full size. The trunk starts at the diameter the chart calls for at the unit's full CFM. Never undersize the start.
• Step down as branches take air. After several runs tap off, the remaining CFM drops — reduce the trunk diameter to match. This keeps air velocity up.
• Stagger your takeoffs. Don't put two taps directly across from each other. Offset them at least 12 inches so they don't fight for air.
• Leave the end alone. The last 1–2 feet of trunk gets no taps. This dead zone lets the system pressurize.

Returns work the same way in reverse. Size the return trunk to carry at least as much CFM as the supply — when in doubt, oversize the return. A choked return is the #1 cause of high static pressure and poor performance.

Example: 2.5-Ton System

Let's put it together. A 2.5-ton unit on a ~1,500 sq ft home moves roughly 875–1,125 CFM.

• Start: 16″ supply trunk (handles 875–1,125 CFM).
• Take a 7″ run (150 CFM) and a 5″ run (50 CFM) off the first section. Remaining: ~675–925 CFM.
• Step down to 14″. Take three 6″ runs (300 CFM total). Remaining: ~375–625 CFM.
• Step down to 12″. Take two 7″ runs (300 CFM) and two 6″ runs (200 CFM). Remaining: roughly ±125 CFM — right in the back-pressure sweet spot.
• Return: 16″ return trunk, sized to carry 1,300–1,500 CFM — comfortably above the supply total.

That's a complete system: unit sized, every room fed, trunk stepped down properly, back-pressure maintained, return oversized. From here it's just materials.

Step 6: Build Your Materials List

The final step is figuring out exactly what to buy based on your duct layout. Walk the design room by room, section by section, and count fittings. Here's what each part of the system needs:

Each branch run requires

• Takeoff fitting — R-AT (rounded face, for round trunk lines) or AT (flat face, for square/rectangular trunk lines). Also called taps.
• Damper — R-AT or AT damper for balancing airflow to that room. Required by building codes in some locations; good practice everywhere.
• Duct — one bag of flex per 25 feet of run length, or adequate length of metal pipe (sold in 5-foot lengths) with insulation.
• Boot — floor boot or ceiling boot, the fitting the air actually comes out of.
• Grille or diffuser — the visible register cover.

The supply trunk requires

• Adequate length of metal duct plus insulation
• Reducers wherever the trunk steps down in diameter
• Square-to-round unit adapter (connects the air handler to the trunk)
• End cap for the far end of the trunk

The return requires

• One bag of flex per 25 feet of return length, or adequate length of metal pipe with insulation
• Sheet of galvanized metal (for the return plenum/box)
• AT fitting the same size as your return duct
• Square-to-round unit adapter
• Return grille (sized to the return — bigger is better here)

Other materials

• Mastic or UL-listed aluminum foil tape (for every joint — not cloth duct tape)
• Flex or metal hanging strap
• 1/4″ sheet metal screws (zip screws)
• 2″ sheet metal screws
• Insulation (for any duct in unconditioned space)

Final Thoughts

Ductwork is the circulatory system of your HVAC — it determines whether that expensive unit actually delivers comfort to every room or just blows hard in the hallway. The rules of thumb in this guide will get you a working system for the vast majority of residential jobs.

Two things to always remember: check your local building codes before starting any work (damper requirements, insulation R-values, and permit rules vary), and when in doubt, oversize the return. A generous return forgives a lot of sins elsewhere in the system.

Glossary of Terms

HVAC

Heating, Ventilation & Air Conditioning.

Unit

The heating and air conditioning system itself — the air handler, condenser, or furnace.

Ductwork

The network of pipes, commonly called duct, that connects your HVAC unit to the vents in your rooms.

Supply

The primary pressure (output) duct of a duct system. Also called the trunk line.

Return

The suction (input) duct of a duct system — carries room air back to the unit.

Run

A secondary pressure (output) duct of a duct system — the branch from trunk to room.

Trunk / trunk line

The main supply (or return) duct leaving the unit. Branch runs tap off it.

Branch run

The smaller duct from the trunk to an individual room's vent.

Takeoff

The fitting where a branch run connects to the trunk.

Boot

The floor or ceiling register fitting that air exits from.

AT

Flanged duct connection with a flat face, for attaching to square trunk lines. Also called taps.

R-AT

Flanged duct connection with a rounded face, for attaching to round trunk lines. Also called taps.

Flex

Flexible vinyl-lined fiberglass insulated duct with aluminized heat shield.

Flex hanging strap

Cloth (generally nylon) hanging strap for flex duct.

Metal hanging strap

Strap used when hanging metal duct. Commonly called plumber's strap.

CFM

Cubic feet per minute — the standard measure of airflow.

Ton

12,000 BTU/hr of cooling capacity — the heat absorbed melting one ton of ice in 24 hours. Roughly 400 CFM per ton.

Back-pressure

Extra CFM capacity left at the end of the trunk (100–250 CFM) that keeps the whole system pressurized so every branch gets its share.

Washing the windows

The practice of placing supply vents above or below windows on exterior walls, counteracting heat gain/loss at the source.

Sheet metal screw

Used to connect pieces of sheet metal. Also called zip screws.

Static pressure

The resistance the blower works against. High static = restricted ducts, dirty filter, or undersized return.
